SCG CBM Proposal for IT architecture transformation

[2019-06-21] A work from my long journey of software development.

Software Development Toolchain #

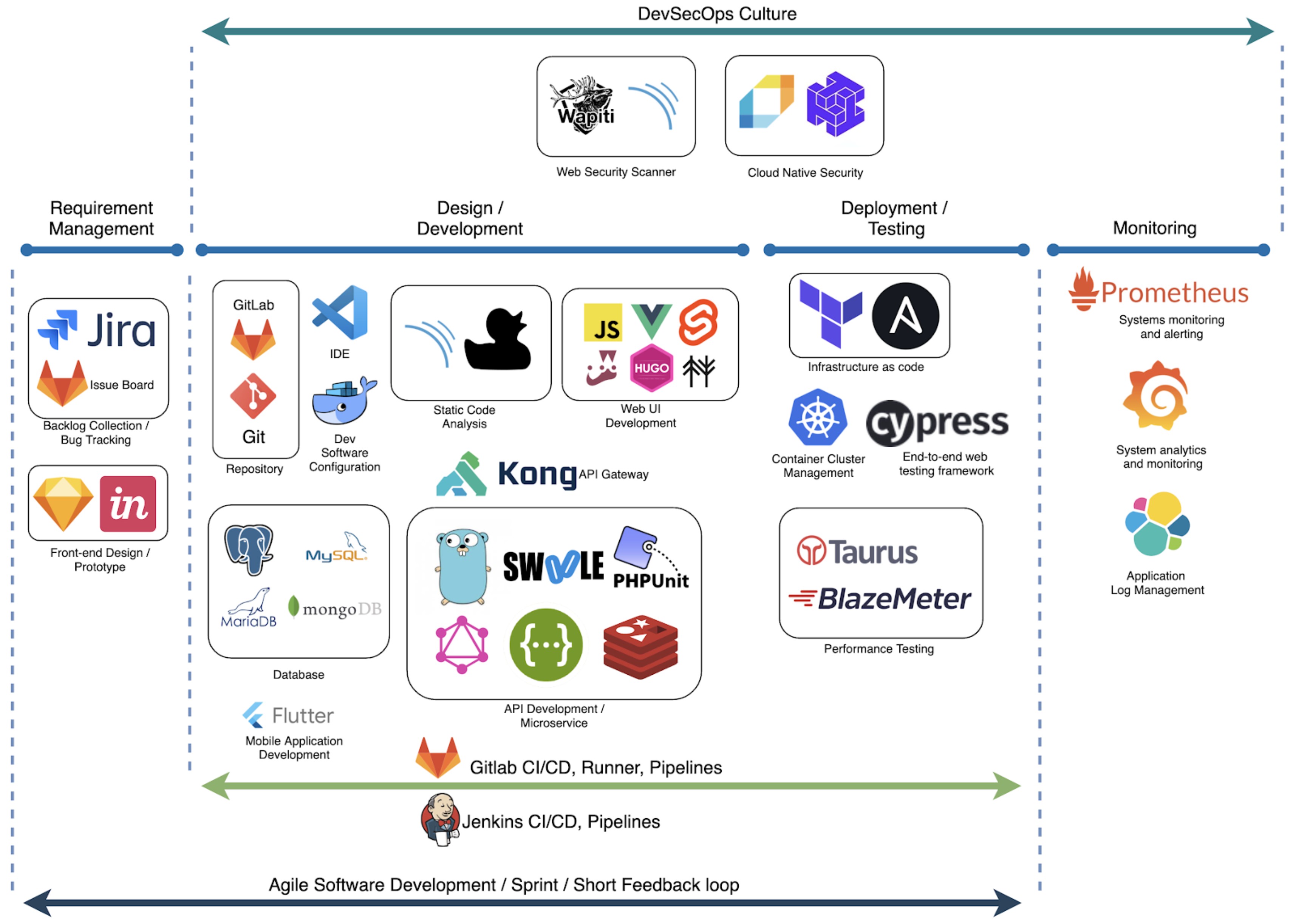

The below image depicts a collection of software toolchain for generic web / mobile application development. It covers end-to-end workflow from product requirements to production and monitoring. It also try to exhibit the relationship of SDLC, Agile, CI/CD, and DevSecOps in one picture comprehensively.

The software components can be changed as the technological change, however, the main structure and relationship are more or less the same.
